Nozzles and Couplings

Blast Nozzles in SE Michigan

Nozzles and Couplings Store in Southeast Michigan - nozzle-tungsten

Tungsten Carbide, Rubber Jacket

Long Venturi Fine Thread 1-1/4"

Model Stock No Orfice ID Length
TSP-3 23513 3/16" 4-3/4"
TSP-4 23514 1/4" 5-3/4"
TSP-5 23515 5/16" 6-1/4"
TSP-6 23516 3/8" 7-3/4"
TSP-7 23517 7/16" 8-1/2"
TSP-8 23518 1/2" 9-5/8"

Long Venturi Contractor, 50MM Thread

Model Stock No Orfice ID Length
TMP-3 23519 3/16" 4-3/4"
TMP-4 23520 1/4" 5-3/4"
TMP-5 23521 5/16" 6-1/4"
TMP-6 23522 3/8" 7-3/4"
TMP-7 23523 7/16" 8-1/2"
TMP-8 23524 1/2" 9-5/8"

Long Venturi Contractor Thread, 50MM 1-1/4" Entry

Model Stock No Orfice ID Length
TXP-6 23525 3/8" 7-3/4"
TXP-7 23526 7/16" 8-1/2"
TXP-8 23527 1/2" 9-5/8"

Short Venturi Fine Thread

Model Stock No Orfice ID Length
TJP-3 23507 3/16" 3-3/4"
TJP-4 23508 1/4" 3-3/4"
TJP-5 23509 5/16" 3-3/4"
TJP-6 23510 3/8" 3-3/4"
TJP-7 23511 7/16" 3-11/16"
TJP-8 23512 1/2" 3-11/16"

Short Venturi Contractor Thread

Model Stock No Orfice ID Length
TYP-3 23501 3/16" 3-3/4"
TYP-4 23502 1/4" 3-3/4"
TYP-5 23503 5/16" 3-3/4"
TYP-6 23504 3/8" 3-3/4"
TYP-7 23505 7/16" 3-3/4"
TYP-8 23506 1/2" 3-3/4"

Nozzles and Couplings Store in Southeast Michigan - bsd-nozzles

Boron Carbide, Aluminum Jacket

Boron Carbide liner material is the most abrasive-resistant, durable, and economical liner material. Long-venturi nozzles allow high production blasting at a distance of 18 to 24 inches for hard-to-clean surfaces, and 30 to 36 inches for loose paint and soft surfaces. Expected life with expendable abrasives is approximately 1000 hours. 1-inch entry provides a smooth transition and maximum productivity with 1-inch ID blast hose.

Long Venturi Fine Thread, 1-1/4"

Model Stock No Orfice ID Length
BSD-4 01419 1/4" 5-7/16"
BSD-5 01420 5/16" 5-7/8"
BSD-6 01421 3/8" 6-13/16"
BSD-7 01422 7/16" 8-1/8"
BSD-8 01423 1/2" 9"

Nozzles and Couplings Store in Southeast Michigan - nozzle-high-performance

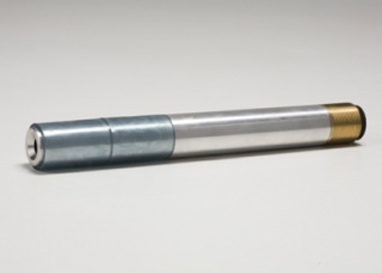

High-Performance Nozzles

The High-Performance nozzles increase abrasive particle velocity, resulting in improved production rates and efficiencies. The High-Performance nozzles will utilize the same air (CFM) requirements as our standard long venturi products for the same given bore size, resulting in lower compressed air operating costs per square foot/meter.

High-Performance Fine Thread 1-1/4"

Stock No Orfice ID Entry Length
XLB4 1/4" 1-1/4" 13.75"
XLB5 5/16" 1-1/4" 13.75"
XLB6 3/8" 1-1/4" 13.75"
XLB7 7/16" 1-1/4" 13.75"
XLB8 1/2" 1-1/4" 13.75"

Angled Nozzles

Nozzles and Couplings Store in Southeast Michigan - nozzle-angles

Tungsten Carbide

Tungsten carbide, 45 degree, single outlet angle nozzle, 1/8" bore, brass jacket with 1-1/4" NPSM threads

Nozzles and Couplings Store in Southeast Michigan - nozzle-mini

Mini Tungsten Carbide

Mini tungsten carbide blast cleaning angle nozzle. Features carbide tipped 8.25" long s/s tube, O.D. 0.5" with 3/4" NPSM thread adapter. 45 deg. 6mm/ 1/4" bore.

Nozzles and Couplings Store in Southeast Michigan - nozzle-ceramic

Curvoblast Nozzle

This high quality advanced ceramic nozzle is unique in design and construction. The Curvoblast nozzle incorporates a liner made from one piece of advanced ceramic wear-resistant material. This design makes our Curvoblast nozzle a market leader in curved nozzle technology.


Standard Blast Hose Couplings

Nozzles and Couplings Store in Southeast Michigan - qa05

QA05

Aluminum. Fits 1/2" ID X 1-3/16" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - qa1

QA1

Aluminum. Fits 3/4" ID x 1-1/2" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - qa2

QA2

Aluminum. Fits 1" ID x 1-7/8" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - qa03

QA3

Aluminum. Fits 1-1/4" ID x 2-5/32" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - qa4

QA4

Aluminum. Fits 1-1/2" OD x 2-3/8" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - qb1

QB1

Brass. Fits 3/4" ID x 1-1/2" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - qb2

QB2

Brass. Fits 1" ID x 1-1/2" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - qb3

QB3

Brass. Fits 1-1/4" ID x 2-5/32" OD Blast hose.

Nozzles and Couplings Store in Southeast Michigan - cqg

CQG

Standard Blast hose coupling gasket

Nozzles and Couplings Store in Southeast Michigan - qp1

QP1

Nylon. Fits 3/4" ID x 1-1/2" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - qp2

QP2

Nylon. Fits 1" ID x 1-1/2" OD Blast hose Also fits 1-1/4" ID x 1-1/2" OD Supa hose

Nozzles and Couplings Store in Southeast Michigan - qp3

QP3

Nylon. Fits 1-1/4" ID x 2-5/32" OD

Nozzles and Couplings Store in Southeast Michigan - cqpg

CQPG

Nylon Blast hose coupling gasket


Nozzle Holders

Nozzles and Couplings Store in Southeast Michigan - he05

HE05

Aluminum. Fits 1/2" ID x 1-3/16" OD blast hose

Nozzles and Couplings Store in Southeast Michigan - he1

HE1

Alumnium. Fits 3/4" ID x 1-1/2" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - he2

HE2

Aluminum. Fits 1" ID x 1-7/8" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - he3

HE3

Aluminum. Fits 1-1/4" ID x 2-5/32" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - hei-ny

HE1-NY

Nylon. Fits 3/4" ID x 1-1/2" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - he2-ny

HE2-NY

Nylon. Fits 1" ID x 1-7/8" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - he3-ny

HE3-NY

Nylon. Fits 1-1/4" x 2-5/32 OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - flanged

Flanged

Nylon. Fits over nozzle, and couples to blast hose


Threaded Couplingss

Nozzles and Couplings Store in Southeast Michigan - cf1

CF1

Brass. 1-1/4" Threaded NPT

Nozzles and Couplings Store in Southeast Michigan - cf2

CF2

Brass. 1-1/2" Threaded NPT

Nozzles and Couplings Store in Southeast Michigan - cfa1

CFA1

Aluminum. 1/1/4" Threaded NPT

Nozzles and Couplings Store in Southeast Michigan - cfa2

CFA2

Aluminum. 1-1/2" Threaded NPT

Nozzles and Couplings Store in Southeast Michigan - cfp1

CFP1

Nylon. 1-1/4" Threaded NPT

Nozzles and Couplings Store in Southeast Michigan - cfp2

CFP2

Nylon. 1-1/2" Threaded NPT

Nozzles and Couplings Store in Southeast Michigan - cfa1-2

CFA1/2

Aluminum. 1/2" Threaded NPT

Nozzles and Couplings Store in Southeast Michigan - cfa3-4

CFA3/4

Aluminum. 3/4" Threaded NPT


Full Flow Blast Hose Couplings

Nozzles and Couplings Store in Southeast Michigan - qa2x

QA2X

Aluminum. Fits 1" ID x 1-7/8" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - qa3x

QA3X

Aluminum. Fits 1-1/4" ID x 2-5/32" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - qa4x

QA4X

Aluminum. Fits 1-1/2" ID x 2-3/8" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - qa6x

QA6X

Aluminum. Fits 2" ID x 2-7/8" Blast hose


Threaded Full Flow Blast Couplings

Nozzles and Couplings Store in Southeast Michigan - sb3x

SB3X

Aluminum. 1-1/2" Threaded NPT

Nozzles and Couplings Store in Southeast Michigan - sb4x

SB4X

Aluminum. 2" Threaded NPT

Nozzles and Couplings Store in Southeast Michigan - sbg2x

SBG2X

Full Full coupling gasket


Full Flow Nozzle Holders

Nozzles and Couplings Store in Southeast Michigan - mhe1

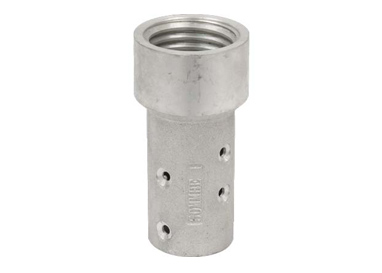

MHE-1

Aluminum. Fits 3/4" ID x 1-1/2" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - mhe2

MHE-2

Aluminum. Fits 1" ID x 1-7/8" OD Blast hose

Nozzles and Couplings Store in Southeast Michigan - mhe-3

MHE-3

Aluminum. Fits 1-1/4" ID x 2-5/32" OD Blast hose

Other

Nozzles and Couplings Store in Southeast Michigan - safety-cables

Safety Cables

Safety Cables. Size: 1-2" -1"; 1"-2-1/2"; 1-1/2" -3"

Nozzles and Couplings Store in Southeast Michigan - coupling-screws

Coupling Screws

Blast hose coupling screws

Nozzles and Couplings Store in Southeast Michigan - safety-clips

Safety Clips

Coupling Saftey Clips.


The W.H. Duffill Difference

We have the equipment and knowledge to help you succeed at any project. At W.H. Duffill, our team will work with you from concept to completion to ensure you have the right equipment, tools, and supplies. Since 1965, we have built a solid reputation for providing high-quality products and reliable services for companies across SE Michigan. For more information, call the team at W.H. Duffill today at 248-542-3808.
